UT-FL1+UT-WP Cross fold Wet Wipes Machine

(5-40wipes/pack)

mini wet wipes - UT-FL1+UT-WP Cross fold Wet Wipes Machine(5-40Wipes/pack)
成品图3尺寸自主统一 logo打马赛克 - UT-FL1+UT-WP Cross fold Wet Wipes Machine(5-40Wipes/pack)
成品图2 尺寸自主统一 logo打马赛克 - UT-FL1+UT-WP Cross fold Wet Wipes Machine(5-40Wipes/pack)

PRODUCT DETAILS

UT-FL1 Wet Wipes Converting Machine +UT-WP Wet Wipes Packaging Machine is capable of producing cross folded pocket sized wet wipes with compact design at affordable pricing that saves your working space.

It is designed to make a vast variety of wet tissues in a pack of 5-40 sheets such as portable baby wipes, bed bath towel, refreshing wet tissue, skincare wet wipes, antibacterial wet wipes, disinfecting wipes, sanitizing wet wipes, makeup removal wipes, personal hygiene wipes and intimate wipes.

WechatIMG2798 300x225 - UT-FL1+UT-WP Cross fold Wet Wipes Machine(5-40Wipes/pack)

  • Output Product: all types of wet tissue (5-40pcs/pack)
  • Structure:Wet tissue converting machine +Flow wrap wet wipes packaging machine

(Human intervention required to transfer tissue from converting machine to packaging machine)

  • PLC control system
  • Packing length and width size changed by servo system, no mechanical adjustment needed
  • All conveyor belts are food-grade, anti-bacterial and suitable for hygienic product transfer
  • 304L Stainless steel is applied to the cover of machine and main spare parts in contact with lotion and fabric
  • Easy and quick change over between different formats
  • User-friendly HMI with touch screen
  • Visual & audible warning systems
  • Machine stops automatically when machine breaks down
  • Structure: (1) raw material loading device, (2) tension control device, (3) tissue folding device, (4) online wetting system, (5) automatic counting device, (6) auto die cutting unit, (7) auto labeling unit, (8) multi-dimensional bag former (9) Auto-Electrical eye tracking (10) Auto air-rejection unit;(11) servo driven sealing unit for finished products.

Work Flow:

Automated Nonwoven loading→ tension control → tissue slitting →tissue folding→ online wetting→ tissue cutting→ tissue stacking & counting → Manual tissue delivery to packaging machine→ bag forming →die cutting→ labeling→ gusseting →auto air → sealing→ finished product output

  • Model: UT-FL1+UT-WP
  • Output product type: Bed bath towel; Adult washcloth; cleaning wipes; make-up removal wipes
  • Converting type: 5-40wipes/pack
  • Semi-automation: tissue converting machine + packaging machine ( Manual feeding in between)
  • Work flow: Auto material loading → Tissue folding→ online wetting → tissue cutting →stacking & counting →Tissues output in a pile→ Manual wipes feeding →conveying wipes to packaging machine → setting packing film →batch code printing → setting window hole label → Central sealing → End sealing and rotating cut → packaging → Output finished products.
  • Capacity: converting speed: 550-600pcs/min | packaging speed: 50-100packs/min
  • Suitable material: [35-80gsm] spun-lace nonwoven
  • Open tissue size: 200(Customized)x (100-350) mm
  • Folded tissue size:100(Customized)x (50-100) mm
  • Folding ways: “Z” + cross fold
  • Wetting system: online-wetting
  • Power: AC380V 50/60Hz | 5.5 kw
  • Operation interface: touch screen
  • Machine size: 5000×1500×2200 mm(L*W*H)
  • Machine weight: 1200kg

Output Product:

Personal care wipes:mini wet wipes 180x180 - UT-FL1+UT-WP Cross fold Wet Wipes Machine(5-40Wipes/pack)

Baby wipes

Bed bath wet towel

Disinfectant wipes

Antibacterial wipes

Medicare wipes

Hand sanitizing wet wipes

Beauty wipes

Hygiene Wet Wipes

Feminine wipes

Pets wipes

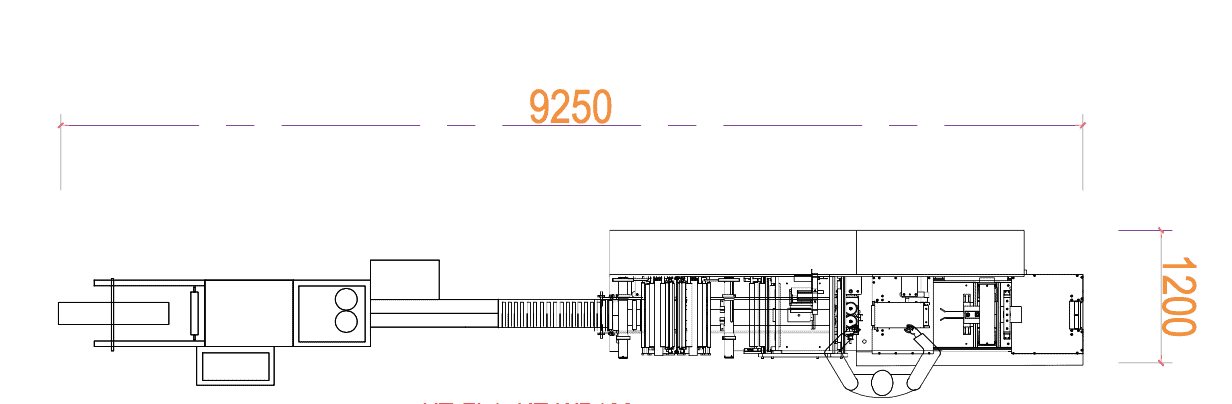

wet wipes packaging machine 1 2 - UT-FL1+UT-WP Cross fold Wet Wipes Machine(5-40Wipes/pack)
